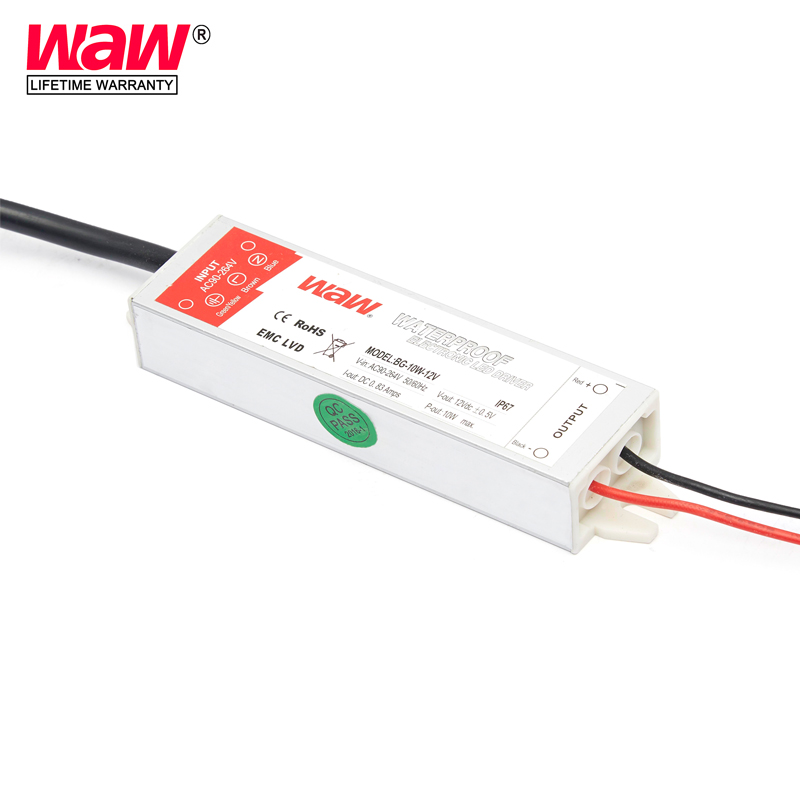

BG-10

Category: BG series

Inquiry Contact us

Product Details

Model BG-10-12 BG-10-24
DC  voltage 12V 24V
Rated current 0.83A 0.42A
Ripple and noise 100mVp-p 100mVp-p
Intet stability ±0.5% ±0.5%
Load stability ±1% ±0.5%
Efficiency 81% 83%
voltage ADJ. range 12V±10% 24V±10%
AC voltage range 90~264VAC 47~63Hz; 250~370VDC
AC Inrush current Cold-start current 30A/250V
Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over voltage 121%~142% Rated output voltage
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Setup,rise,hold up time 100ms 60ms /230VAC at full load
Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature and humidity -10°C ~+50°C
Store temperature and humidity -20~+85°C, 10~95%RH
Overall dimension 116×29×20mm 126PCS/CARTON
Weight 0.12KG
CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
