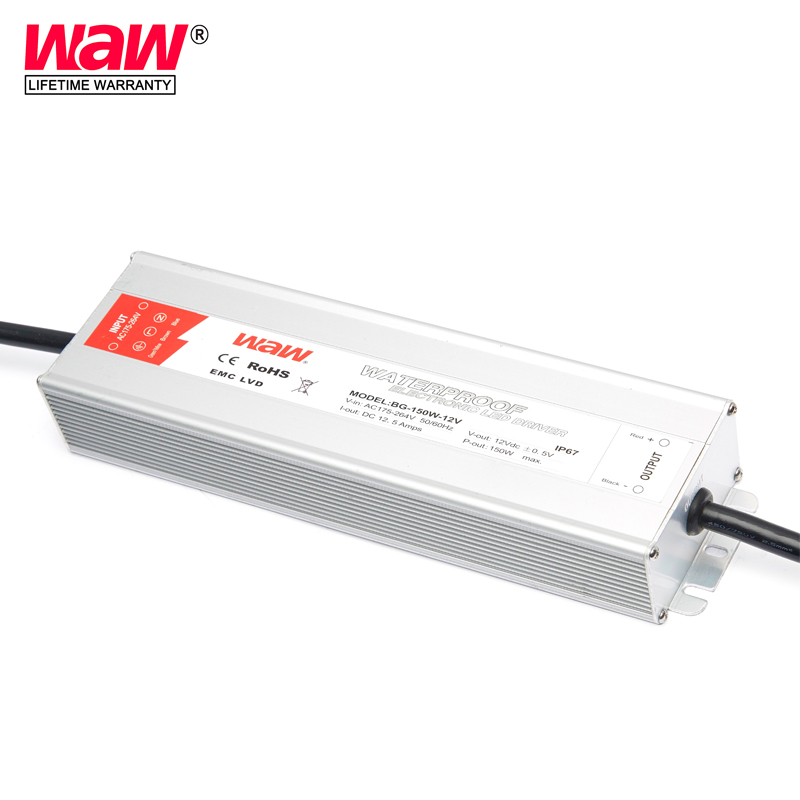

IP67 150W LED DRIVER

MODEL

BG-150-12

BG-150-24

BG-150-36

BG-150-48

OUTPUT

DC voltage

12V

24V

36V

48V

Rated current

12.5A

6.3A

4.2A

3.1A

Current range

0 ~ 12.5A

0 ~ 6.3A

0 ~ 4.2A

0 ~ 3.1A

Rated power

150W

151.2W

151.2W

148.8W

Ripple & noise

100mVp-p

150mVp-p

150mVp-p

200mVp-p

Setup,rise,hold time

500ms, 20ms,20ms/230VAC

INPUT

Voltage range

85~132VAC / 176~264VAC selected by switch        240~370VDC

Frequency range

47 ~ 63Hz

Efficiency

83%

84%

84%

85%

Ac current

3.2A/115VAC    1.6A/230VAC

Inrush current

Cold start 40A

Leakage current

<2mA/240VAC

PROTECTION

Overload

115 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

Over voltage

5.8~6.8V

28~32V

28~32V

55~64V

Protection type :Shut off

ENVIRONMENT

Working temp,humidity

-20℃ ~ +60℃,20% ~ 90% RH non-condensing

Storage temp,humidity

-20℃ ~ +85℃,10% ~ 95% RH non-condensing

Withstand vibration

10 ~ 500Hz, 2G 10min/1cycle,period for 60min. each axes

SAFETY & EMC

Safety standard

Design refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMC standard

EN55015,EN55022,EN55024,EN61000-3-2,EN61000-3-3,EN61547 approved

OTHERS

MTBF

500K hrs

Dimension

222*68*42mm (L*W*H)

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
